How to Prepare Your Files for Laser Cutting

Properly preparing your files ensures a smooth and efficient laser cutting process. Here are some key steps to follow.

Accuracy: Vector files provide precise measurements, which are critical for intricate laser cutting work.

Clarity: They retain crisp edges regardless of scaling, ensuring high-quality results.

Efficiency: Laser cutting machines recognize vector paths as instructions for cutting, engraving, or etching, simplifying the process.

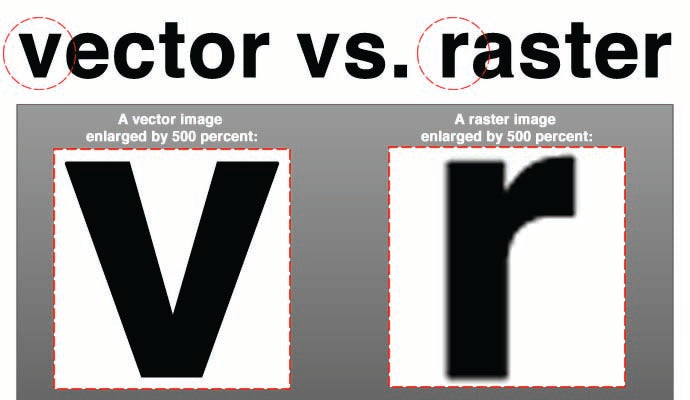

A raster image is a type of digital image made up of a grid of tiny individual squares, called pixels. Each pixel holds a color value, and when combined, these pixels form the entire image. Raster images are best suited for images that have complex color gradients and detailed visual information, like photographs or artwork.

Common formats for raster images include:

• JPEG
• PNG
• GIF
• BMP
• TIFF
• PDF

Raster files consist of pixels and aren’t suitable for laser cutting, as they lack the precise lines needed for accurate cutting. To ensure precise cuts, raster images must be converted into a vector format, which uses defined paths and shapes that the laser can follow.

Raster Images:

• Definition: Raster images are made up of tiny pixels, and their resolution is fixed.
• Examples: Common raster file types include JPG, PNG, GIF, and PSD.
• Use Cases: Raster images are suitable for photographs, detailed graphics, and images that require pixel-by-pixel editing.
• Scaling: When resized, raster images can become pixelated or blurry.

Vector Images:

• Definition: Vector images are created using mathematical formulas and lines, points, and curves.
• Examples: Common vector file types include AI, EPS, SVG, and PDF.
• Use Cases: Vector images are ideal for logos, illustrations, and other graphics that require scalability and crisp edges.
• Scaling: Vector images can be scaled up or down without any loss of quality.

AI (Adobe Illustrator)

SVG (Scalable Vector Graphics)

EPS (Encapsulated PostScript)

PDF (Vector-based)

Popular tools for designing vector files include:

• Adobe Illustrator: Ideal for detailed, scalable designs.
• CorelDRAW: Known for its versatility and ease of use.
• Inkscape: A free, open-source option for creating vector graphics
• Canva: Easy to use, must be saved as a SVG

If you only have raster images, you can convert them into vectors. Software like Adobe Illustrator or Inkscape are excellent for creating and editing vector files. Each offers tools for precision design and file export in laser-compatible formats. You can trace your image manually or use automated tracing tools to generate vector paths. High-contrast black-and-white images typically produce the best results.

Properly prepared vector files ensure smooth, accurate, and high-quality laser cutting results.

If you’re unsure about how to create or prepare a vector file, we’ve got you covered with our professional design services.

We an assist with converting raster images (such as JPEG or PNG) into vector files or creating designs from scratch.

Please note that this service may incur a fee, which will be determined based on the complexity of the job, the time required, and the amount of work involved. Simply send us your design or concept, and we’ll collaborate with you to ensure it’s perfectly optimised for laser cutting. Let us handle the details and make the process smooth and hassle-free for you!

1. Prepare Your Design File

Please make sure your file is properly formatted:

Accepted file types: AI, SVG, EPS or PDF (vector-based only)

Scale: Set your design to a 1:1 scale

Vector format only: Ensure all elements are vector
paths (no raster images)

Make sure all fonts have been converted to outlines.

Cutting vs. engraving: Use colour-coding or separate layers to differentiate between cut lines and engraved areas

If you have questions about how to format your file, we're happy to assist.

2. Include the Following Project Details

To provide an accurate quote, please include:

Material type and thickness (if known)

Quantity required

Specific tolerances, finishes, or special instructions

Whether you're requesting a quote only or submitting a final order

3. Submit Your File

You can send your file and details through any of the following methods:

Email: info@lasercutblanks.com.au — Please include “Laser Cutting Quote Request” in the subject line

Upload your file and quote request using out online form here

4. Review and Response

Once we receive your submission, our team will review your file and respond with a quote or any questions. We aim to provide quotes within 1–2 business days.
